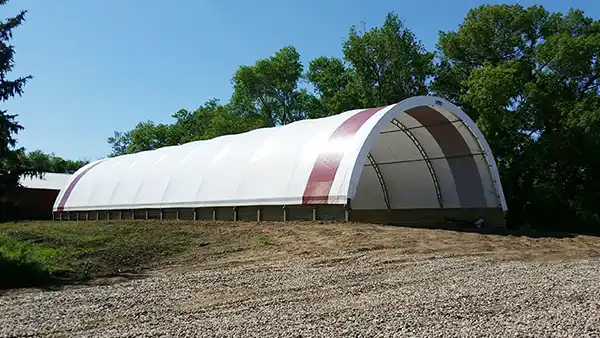

Our Rushmore 44′ Wide Pony wall hoop shelter is a welded truss building. It can be constructed to meet or exceed IBC Engineering code requirements for a 100 mile-per-hour wind load and a 60 pound per square foot snow load.

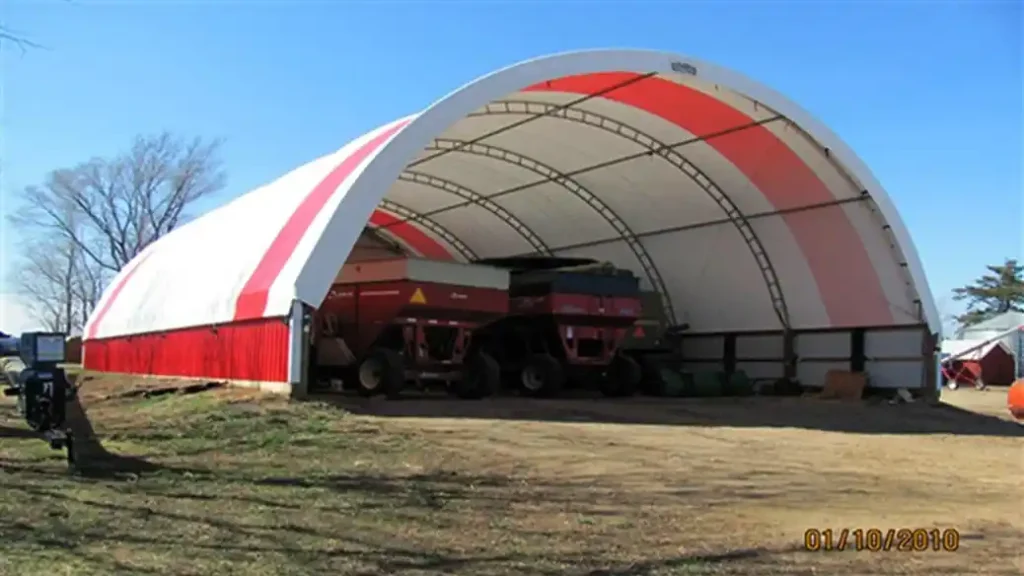

This is a clear span building, meaning there are no interior posts or walls to get in your way no matter what you want to use the building for. That’s just one of the reasons these are great sheds for all kinds of storage purposes. With a peak height of almost 17 feet, not counting your pony wall, you can store tall machinery or stack things really high!
If you’re interested in a great hoop barn for many uses, take a minute to fill out the quote form on this page and we’ll be with you as soon as possible. If you “gotta know right now”, give us a call!
The term “monotube” means that the rafters are a round heavy gauge single pipe. In the 24′ wide building these rafters are spaced 6′ apart and connected with 3 rows of purlins. The minimum length available is 24′ but the maximum length is any increment of 6′ you desire. These rafters can also be spaced closer for special circumstances, just ask.
This model is a “ponywall” building. It is designed to be erected on posts or a concrete wall. A 4′ high ponywall is the industry standard. If you put your building on a 4′ wall, the overall peak height would then be 13’1″. Wall height is flexible but please let us know your plans so that we can advise you with the correct mounting brackets. Your ponywall must be at least 24″ tall to properly tension the cover.
There are many more options available than we have been able to list here. The best way to get the building that meets your specific needs is to give us a call, 1-888-497-1088.
| Width | 24′ Interior width from wall to wall |
| Peak Height | 9’1″ plus height of wall |
| Tensioning System | Pipe with ratchets at each rafter and end |
| Cover Material | Tear resistant high-density polyethylene |
| Cover Weight | 12.5 oz. |
| Rafter Material | USA-made Gatorshield® structural steel |
| Pipe Gauge | 12 |
| Pipe Diameter | 2 3⁄8“ |
| Rafter Spacing | 6′ |
| Cover Material Warranty | 15 year pro-rata |
| Included | All hardware and lag bolts for post attachment |
| Not Included | Posts or walls, rub rail, baseboards or concrete anchors, assembly |
| Downloadable Specs | Click Here to Download PDF |
* Starred fields are required. Please use the message box to let us know about special needs like roof vents, feed awnings, doors, etc.
