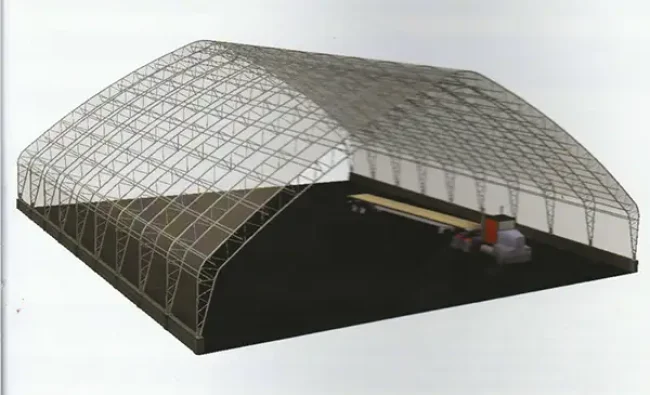

Artist's rendering of a clear span truss building.

100' Wide Fabric Tension Building

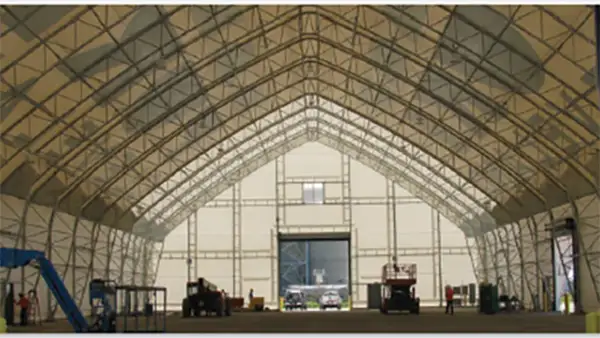

Clear span interior of a truss hoop building

Tap to Enlarge

This 100 foot building is a welded pipe truss engineered and warranted structure.

These are our fabric tension buildings with a different shape than our smaller buildings. Rather than round roofed, this building is more house shaped. We call them Gable End Buildings.

This hoop building is still a clear-span building and can be constructed to meet or exceed IBC Engineering Code requirements for a 90 mile-per-hour wind load and a 50 pound per square foot snow load. It is available with truss spacing at 10, 12 or 14 feet. Whether you need a 100 x 100 building or your needs run more to 100×200 buildings, this hoop can be custom configured to meet your hoop shed needs.

This is a very versatile fabric 100 foot building with side walls for additional height which allows you to use every square foot of space. There are many ventilation and end options for the 100′ building, just as there are with all of our hoop structures.

Interested in this building?

Call for Pricing!

Hoop Building Specifications

Some of the Available Options include:
  • Available almost any length you want
  • Roll-up fabric doors and door headers up to 16′
  • End walls with supports.
  • Colors, stripes, colors and more colors
This hoop barn is a 100 foot wide fabric tension structure. No matter how short you make it in length, it is huge! This hoop building is engineered to be permanent yet you could easily and economically relocate it somewhere else. Fabric tension barns build quickly. You’ll be able to use your investment right away and you won’t have high maintenance costs either. Hoop barns are almost zero maintenance. We ask that you call us about this building because there are many options and alternatives to consider. We have years of experience to guide you to the building you need. Click here to call us.
Width 98′ Interior width from wall to wall
Peak Height 40’11 ¼” plus height of wall
Tensioning System Pipe with 2″ ratchets at each rafter and end
Cover Material Tear resistant high-density polyethylene
Cover Weight 12.5 oz.
Rafter Material Welded Steel Trusses
Pipe Diameter 4″ 12 ga top chord and 4″ 10 ga bottom chords
Rafter Spacing 10′ standard, 8′ and 14′ available
Cover Material Warranty 15 year
Included All hardware and lag bolts for post attachment
Not Included Posts or walls, rub rail, baseboards or concrete anchors, assembly
Downloadable Specs Click Here to Download PDF
100' wide hoop barn dimensions
